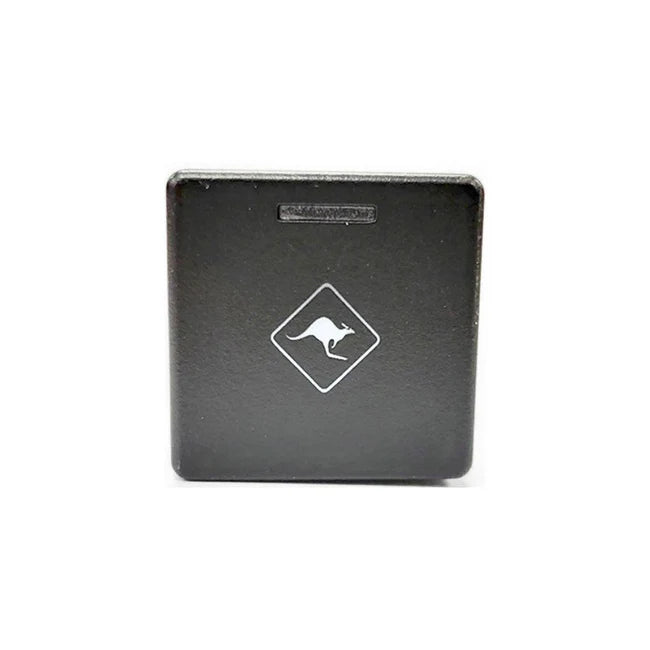

Lightforce Lightforce DC4 Switch to suit Isuzu/Mazda 3rd Gen
- Make: Model Compatible From Compatible To
- Model: Lightforce DC4 Switch
- Price: $28 AUD
- Location: SA
- Listed on: gunforce.com.au
- Dealer: Gunforce
This Lightforce single switch is moulded from a blend of ABS plastic and polycarbonate to ensure longevity. Its compact design will integrate with the vehicle seamlessly. Specifications Include: Dual LED illumination (white/blue) Suitable for positive switched vehicles only RoHS compliant Harness included (100mm in length) 3 amps current rating @ 12v Switch dimensions: 22mm (H) x 22mm (W) Mounting dimensions: 17.5mm (H) x 19mm (W) When switch is in the off position (up) the height of the switch top is the same as the existing factory switches When the switch is in the on position (down) the difference in height is less than 2.00mm Electrical Specifications: Blue – 12v input Yellow – 12v switched output Not used Red – 12v dash light illumination Black - negative Positive switching only Independent 12v circuit for dash illumination Separate active LED is powered via the +ve switched output Negative is common for dash illumination LED and switch active LED LED illumination Colours – Dash lights on = white, active indicator colour = blue Illumination: The LED illuminates white via the dash light circuit, once the switch is pushed on, the LED illuminates blue. Lightforce Harness Integration: Use Lightforce part number SWADP4 for integration to Lightforce Driving Light harness LFDLHSS. NOTE: Suits low-mid spec vehicles only as top spec vehicles do not have any suitable switch blanks available due to heated seats Vehicle Compatibility Make Model Compatible From Compatibl...
