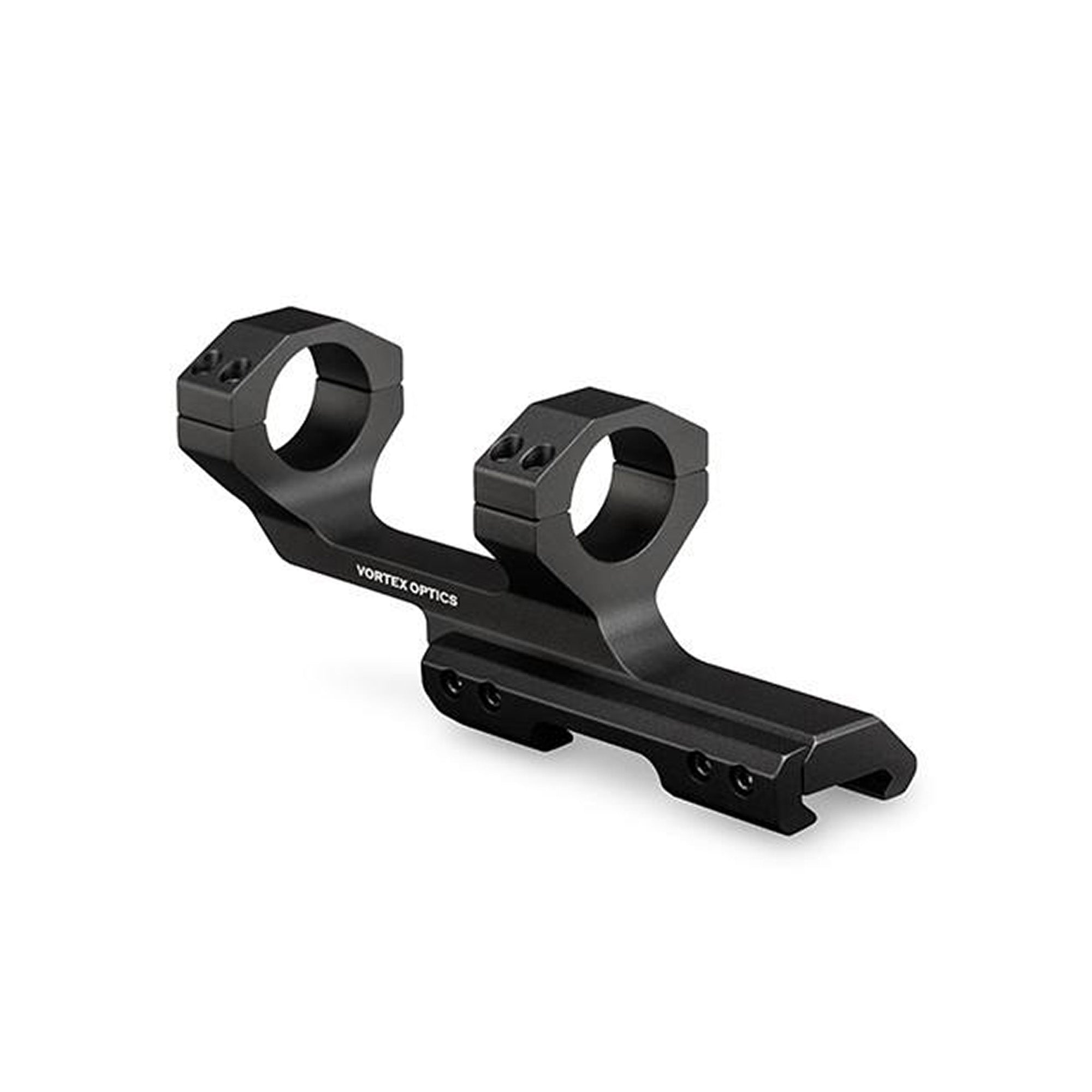

Cantilever Ring Mount (2Pc)
- Model: CM 103
- Caliber: 40.39 mm
- Action: Bolt Action
- Price: $222 AUD
- Location: NSW
- Listed on: horsleyparkgunshop.com.au
- Dealer: Horsley Park Gun Shop
Use this cantilever mount for mounting scopes onto rifles with picatinny rails. The 2-inch offset of this cantilever mount positions the scope in a forward location, allowing the correct eye relief, also available in 3 inch offset. Aluminum construction. 0 MOA so can be used in extended forward or rearward position. Great for rifles with a full length rail (ie. chassis) or long eye relief, or use rearwards for scopes with a short eye relief. The cantilever ring mount positions the telescopic sight at a height of 1.59 inches (40.39 mm) from top of the picatinny rail to center of scope tube. Weighs 6.7 ounces. Tighten rail mount bolt to 20 inch pounds. Tighten scope ring fasteners to 16 inch pounds. Available in: 1" inch Scope Tube, 2" inch Offset(CM-102) 1" inch Scope Tube, 3" inch Offset (CM-103) 30mm Scope Tube, 2" inch Offset (CM-202) 30mm Scope Tube, 3" inch Offset (CM-203)
